036145B: Full suspension bush kit

Reference: 036145B

Product name: Full suspension bush kit

Fits to:

• BMW 3 IV E46 (98-07) Compact / rwd / 4x4 xi xd
• BMW Z4 I (02-08) E85 / E86

Include:

• 2x 031248B: Front anti roll bar bush


• 2x 031516B: Front wishbone bush - centric 60mm
  or
• 2x 031517B: Front wishbone bush - centric 66mm
  or
• 2x 031518B: Front wishbone bush - eccentric 66mm
  or
• 2x 031520B: Front wishbone bush - 4x4 versions XI XD


• 2x 031173B: Rear trailing arm front bush
• 2x 031174B: Rear control arm upper inner


• 2/4x 031175A: Rear arm - outer bush SPORT


• 2x 031176B: Rear control arm lower inner
• 2x 031167B: Anti roll bar bush front / rear
• 2x 031413B: Rear subframe front bush
• 2x 031414B: Rear subframe rear bush
• 2x 031751B: Rear differential front mount bush
• 1x 031752B: Rear differential rear mount bush
• 2x 031962B: Rear anti roll bar link to anti roll bar bush
• 2x 031963B: Rear anti roll bar link to arm bush

Diagrams:

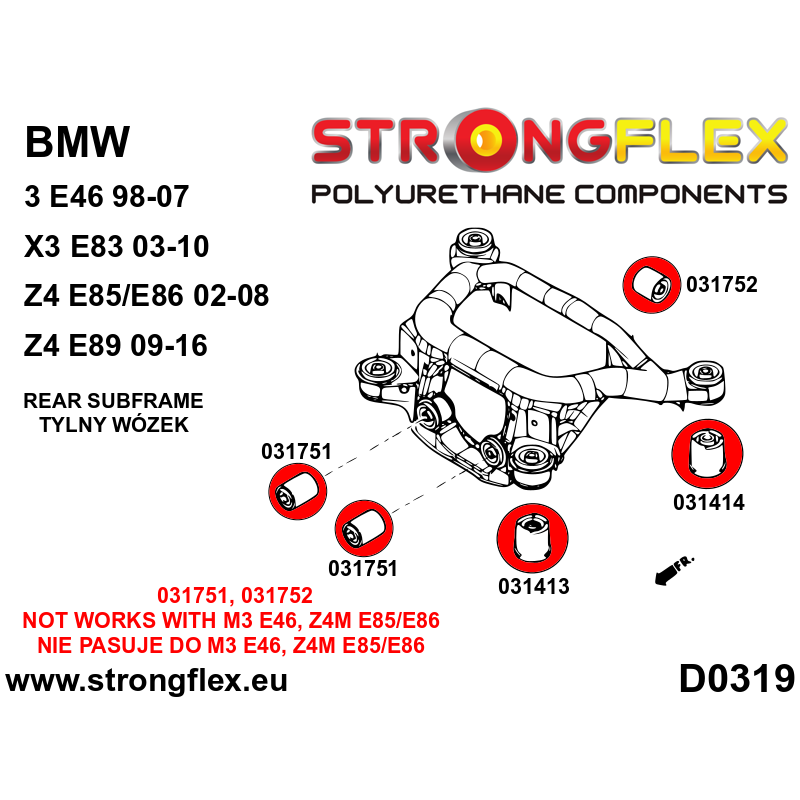

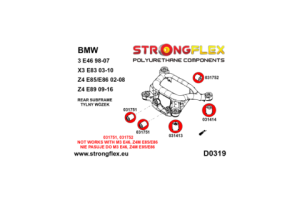

• D0319

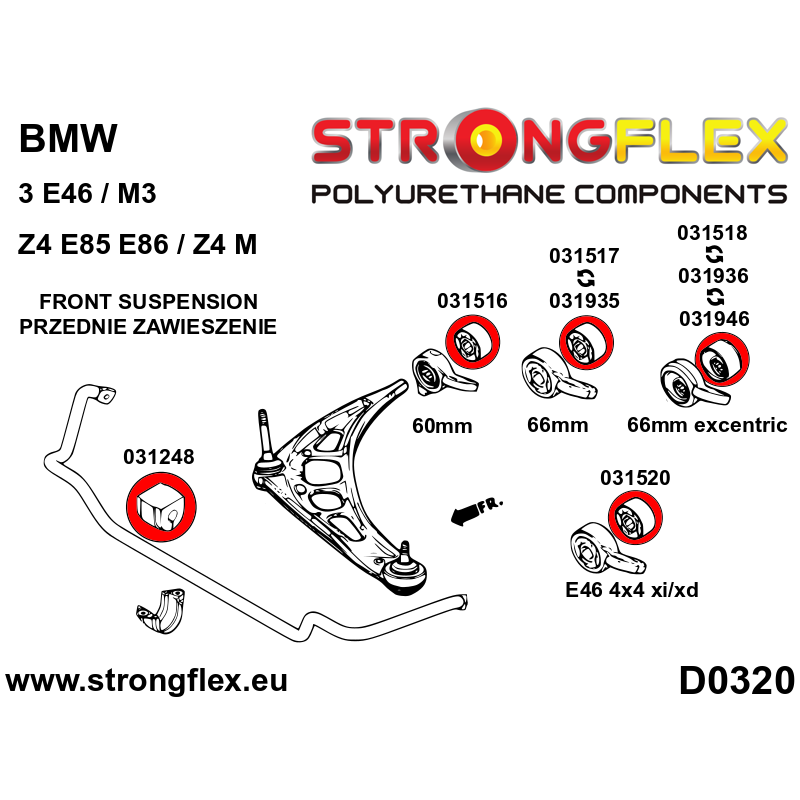

• D0320

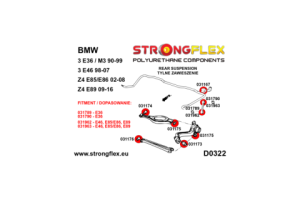

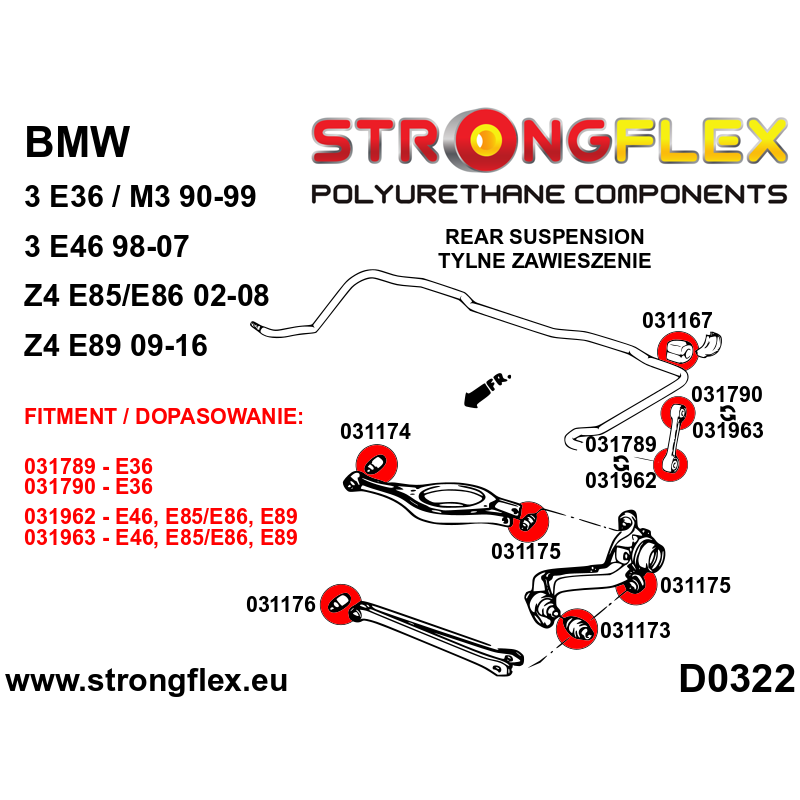

• D0322
• S0345
• S0346

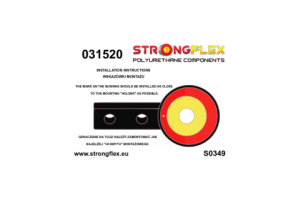

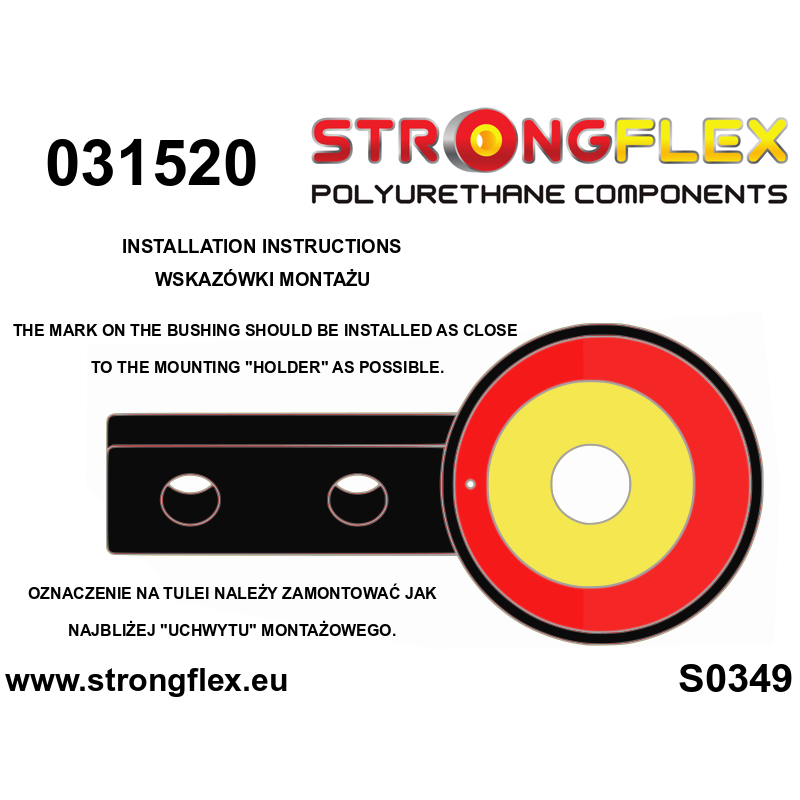

• S0349

Notes

• Front wishbone bush - rear:
  031516 - centric 60mm
  031517 - centric 66mm
  031518 - eccentric 66mm
  031520 - 4x4 versions XI XD


• For bushing 031175:
  This bushing is not suitable for the upper steering knuckle mount on significantly lowered vehicles with a modified steering knuckle angle. Select the appropriate quantity: 2 or 4 pieces.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 25/27

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Reference: 276257B

Product name: Full suspension polyurethane bush kit

Fits to:

• Subaru Levorg (14-20) VM
• Subaru WRX STI (14-22) VA

Include:

• 2x 271529B: Front arm front bush
• 2x 271922A: Front anti roll bar bush SPORT


• 2x 271698B: Rear trailing arm front bush
• 2x 271611B: Rear trailing arm rear bush
• 2x 271612B: Rear toe adjuster inner bush
• 2x 271613B: Rear lower track control inner bush
• 2x 271614B: Rear upper arm front bush
• 2x 271615B: Rear upper arm rear bush
• 2x 271616B: Rear anti roll bar bush


• 2x 271541B: Rear diff front mounting bush
• 2x 271923B: Rear subframe – front bush
• 2x 271924B: Rear subframe – rear bush
• 2x 271925B: Rear differential – rear bush


• 0/1x 271620B: Steering rack mount bush
• 0/2x 271621B: Steering rack mount bush

Diagrams:

• D2717
• D2724
• D2737

Notes

• Steering gear bushings:
  Bushings 271620 and 271621 fit hydraulic steering gear only. They do not fit electric steering gear.


• For bushes 271923 and 271924:
  During assembly, original metal washers must be used between the polyurethane bushes and the chassis.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 26/29

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Reference: 026280A

Product name: Full suspension bush kit SPORT

Fits to:

• Audi A6 C5 (97-04) FWD


• Škoda Superb I (02-08) 3U


• Volkswagen Passat V (97-05) B5 FWD

Include:

• 2x 021255A: Front lower wishbone inner bush SPORT
• 2x 021257A: Front lower wishbone outer bush 50mm SPORT

• 2x 021258A: Front lower wishbone - rear bush SPORT
• 4x 021259A: Front upper wishbone bush SPORT
• 2x 021285A: Front anti roll bar bush SPORT
• 4x 021923A: Front anti roll bar link bush SPORT


• 4x 221763A: Front subframe bush SPORT


• 2x 221964A: Rear beam bush SPORT

Diagrams:

• D0201
• D0218
• D2219

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 22

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Reference: 036238B

Product name: Full suspension bush kit

Fits to:

• BMW M3 E46 (00-06)
• BMW Z4 M E85 / E86 (06-08)

Include:

• 2x 031248B: Front anti roll bar bush

• 2x 031516B: Front wishbone bush - centric 60mm (M3)
  or
• 2x 031518B: Front wishbone bush - accentric 66mm (Z4)
  or
• 2x 031946A: Front wishbone bush - accentric 66mm SPORT (Z4)

• 2x 031173B: Rear trailing arm front bush
• 2x 031174B: Rear control arm upper inner
• 2x 031176B: Rear control arm lower inner
• 2x 031586B: Rear anti roll bar bush
• 2x 031413B: Rear subframe front bush
• 2x 031414B: Rear subframe rear bush
• 1x 031898A: Rear differential - front mount bush M3 SPORT
• 2x 031899A: Rear differential - rear mount bush M3 SPORT
• 2x 031962B: Rear anti roll bar link to anti roll bar bush
• 2x 031963B: Rear anti roll bar link to arm bush

Diagrams:

• D0320
• D0347
• D0340

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 23

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
