226121A: Full suspension bush kit SPORT

Reference: 226121A

Product name: Full suspension bush kit SPORT

Fits to:

• Audi A3  I (96-03) 8L Quattro
• Audi S3 I (96-03) 8L
• Audi TT 8N (99-06) Quattro


• Seat Leon I (99-05) 1M 4x4
• Seat Leon I (99-05) 1M Cupra R 4x4


• Škoda Octavia I (96-10) 1U 4x4


• Volkswagen Bora I (98-05) 1J 4Motion
• Volkswagen Golf IV (97-10) 1J 4motion
• Volkswagen Golf IV (02-03) 1J R32
• Volkswagen New Beetle (97-10) RSi

Include:

• 2x 221072A: Front wishbone - front bush 30mm SPORT
  or
• 2x 221343A: Front wishbone - front bush 45mm SPORT

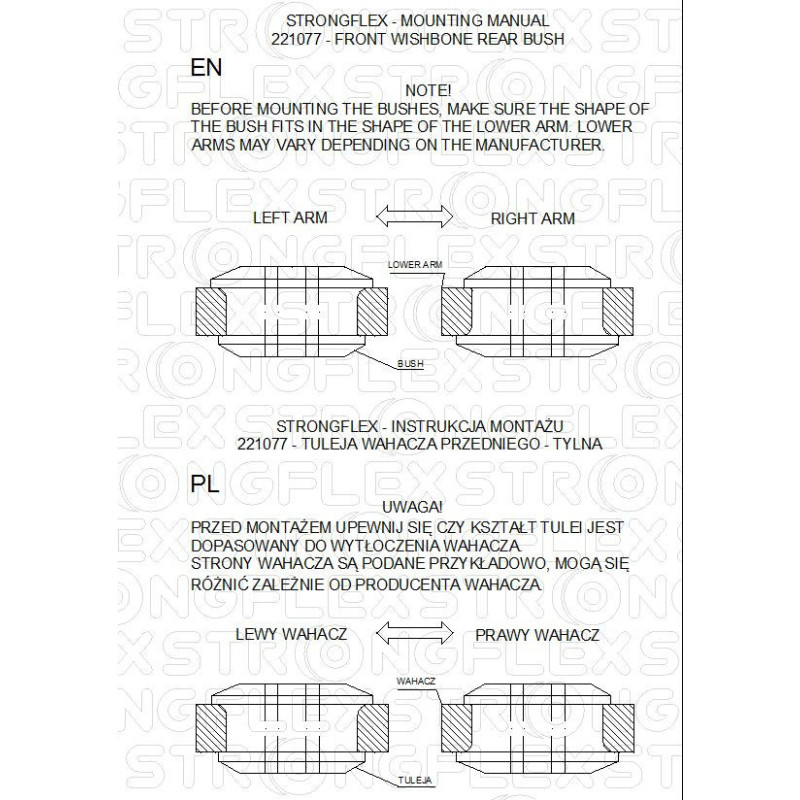

• 2x 221077A: Front wishbone - rear bush SPORT
  or
• 2x 221344A: Front wishbone - rear bush SPORT


• 2x 221088A: Front anti roll bar bush SPORT
  or
• 2x 221089A: Front anti roll bar bush SPORT


• 0/4x 221084A: Anti roll bar link bush SPORT


• 2x 021784A: Front subframe bush SPORT


• 4x 221371A: Rear wishbone inner bush SPORT
• 4x 221940A: Rear tie bar to hub bush SPORT
• 2x 221372A: Rear lower wishbone front mounting bush SPORT
• 2x 221445A: Rear anti roll bar bush SPORT


• 2x 221862A: Rear diff mount - front bush SPORT
• 2x 221863A: Rear diff mount - rear bush SPORT
• 4x 221864A: Rear subframe bush SPORT


• 1x 221965A: Steering rack mount bush SPORT


• 0/2x 221899A: Front shock top mount bush SPORT

Diagrams:

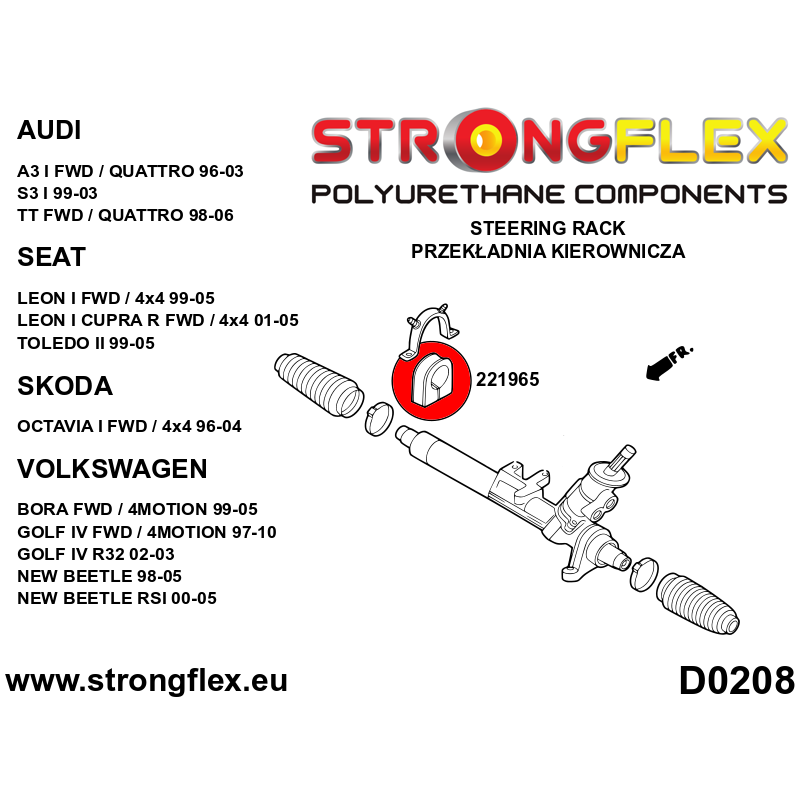

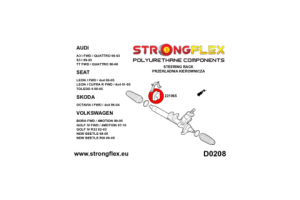

• D0208

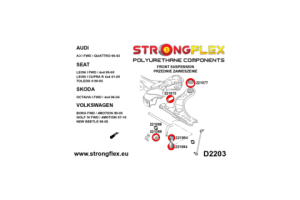

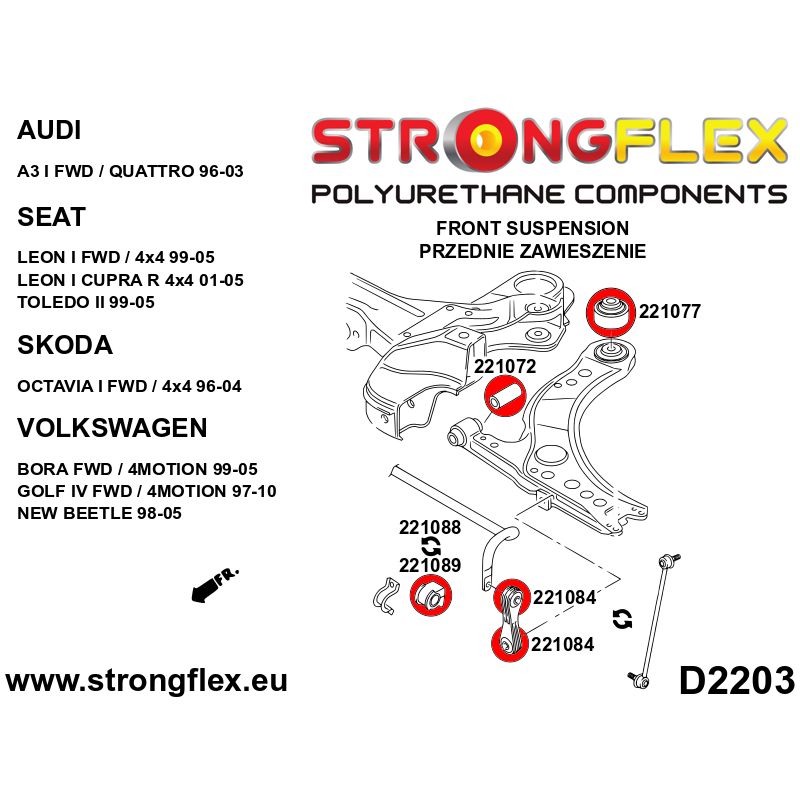

• D2203

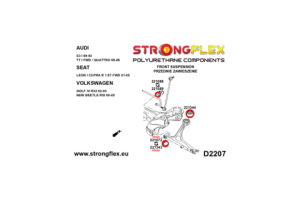

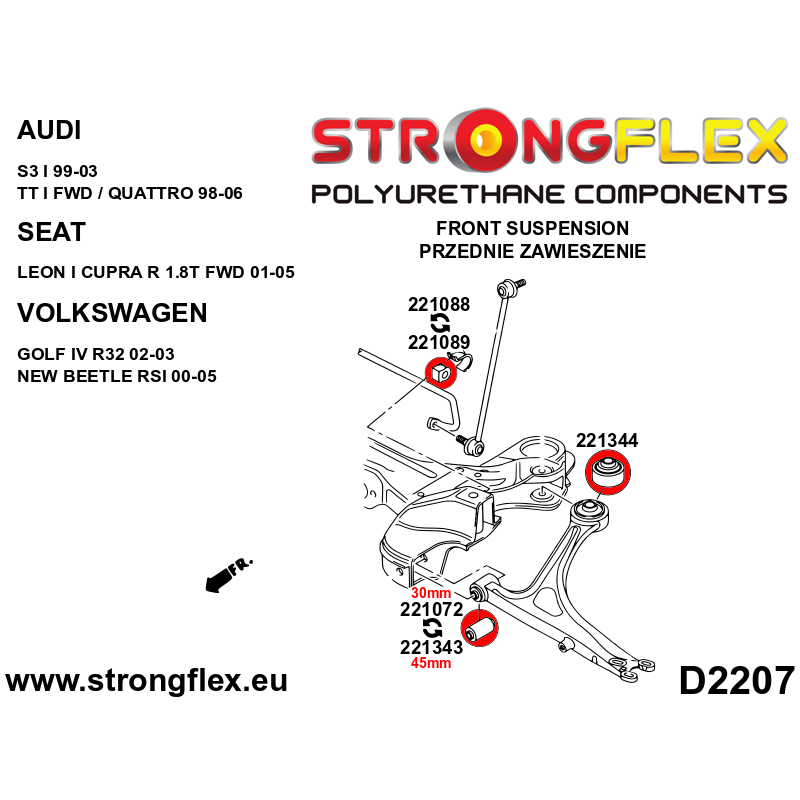

• D2207

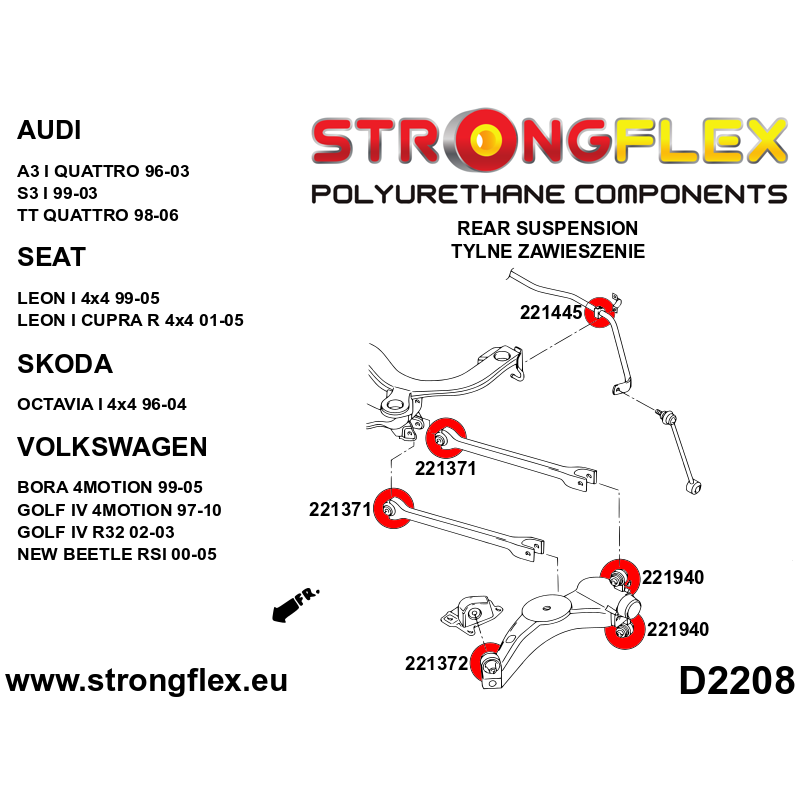

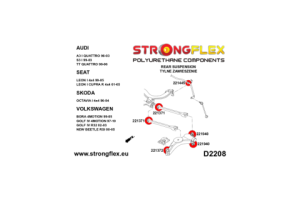

• D2208

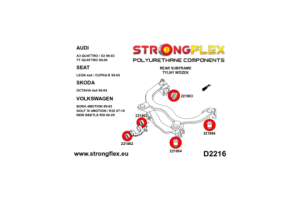

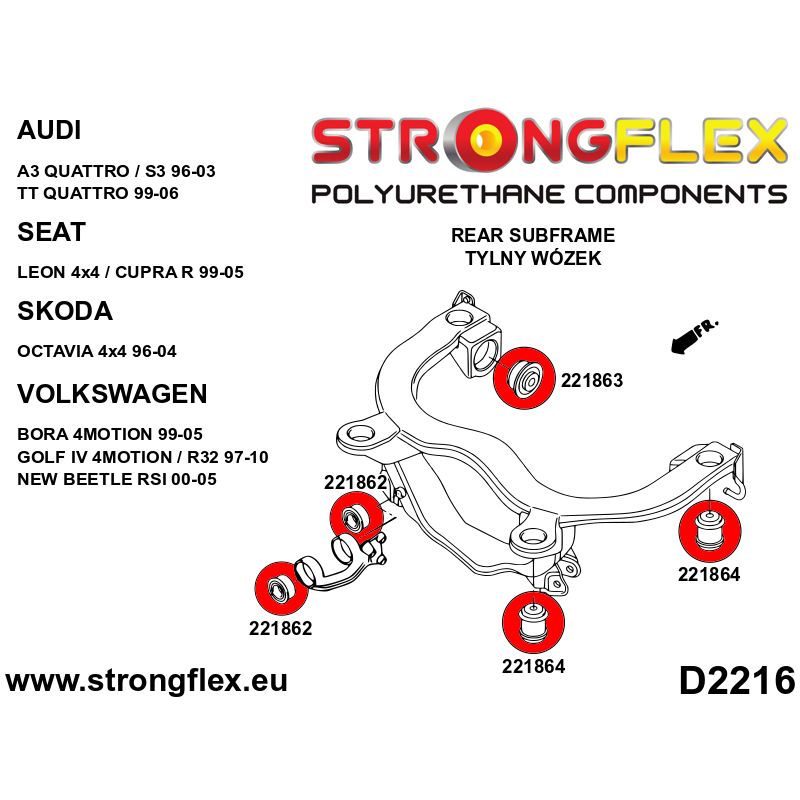

• D2216

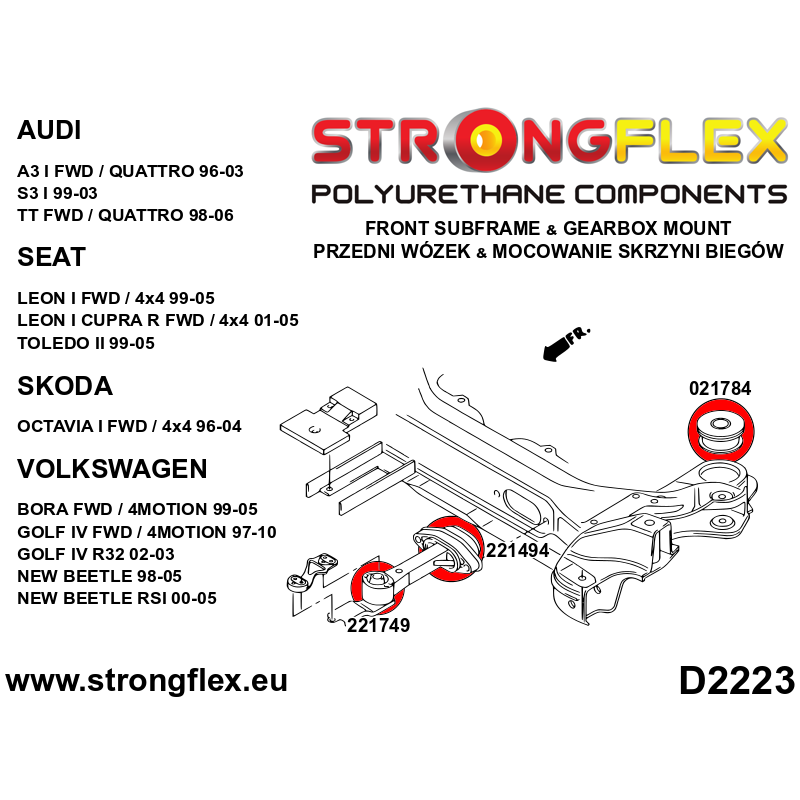

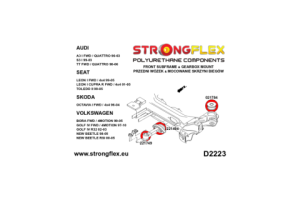

• D2223
• S2201
• S2202
• S2206

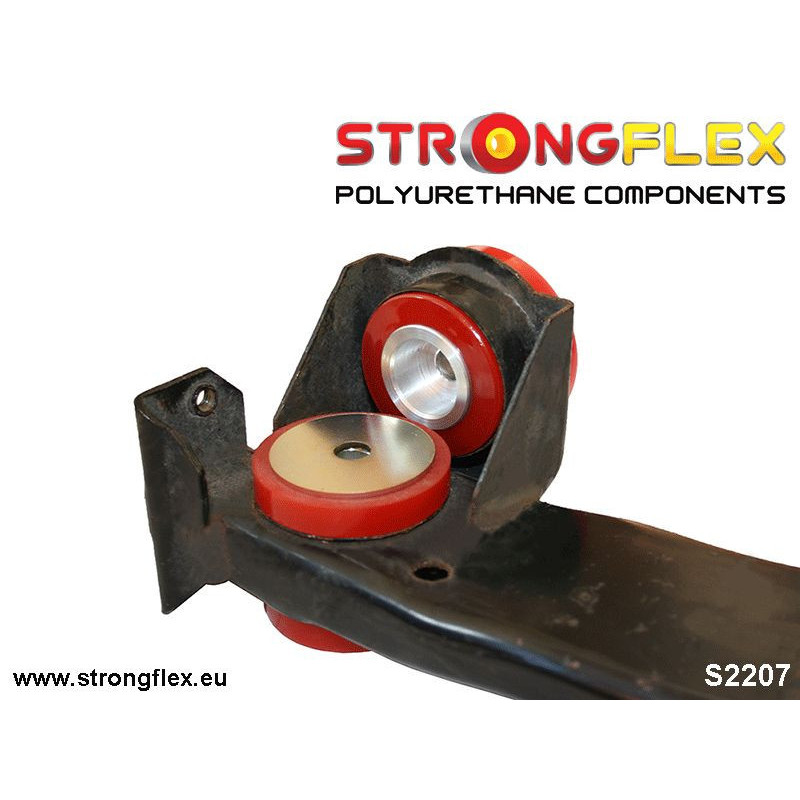

• S2207

Notes

• In models in which "cast steel" wishbones were installed, there are two types of front wishbone bushings.
  Earlier models were equipped with sleeves with a diameter of Ø30mm (221072), while later models had sleeves with a diameter of Ø45mm (221343). The rear bushing for this control arm is 221344.
  For "stamped steel/sheet metal" wishbones, matching bushings are: 221072 and 221077.

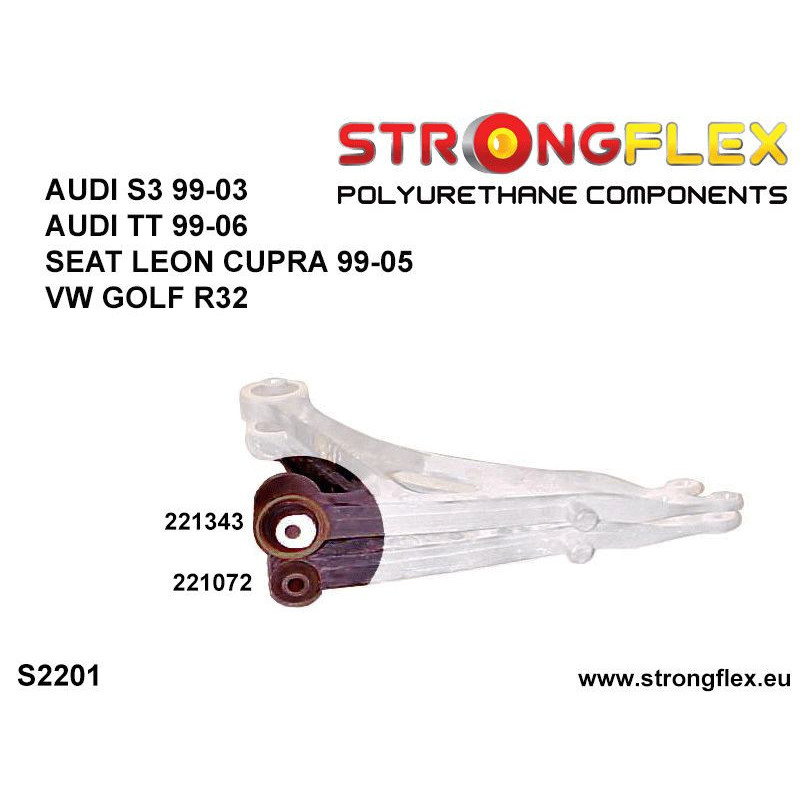

  Before placing an order, please check the type of swing arm carefully. In the case of a "steel cast" swing arm, also check the diameter of the front bush (See photo S2201)!

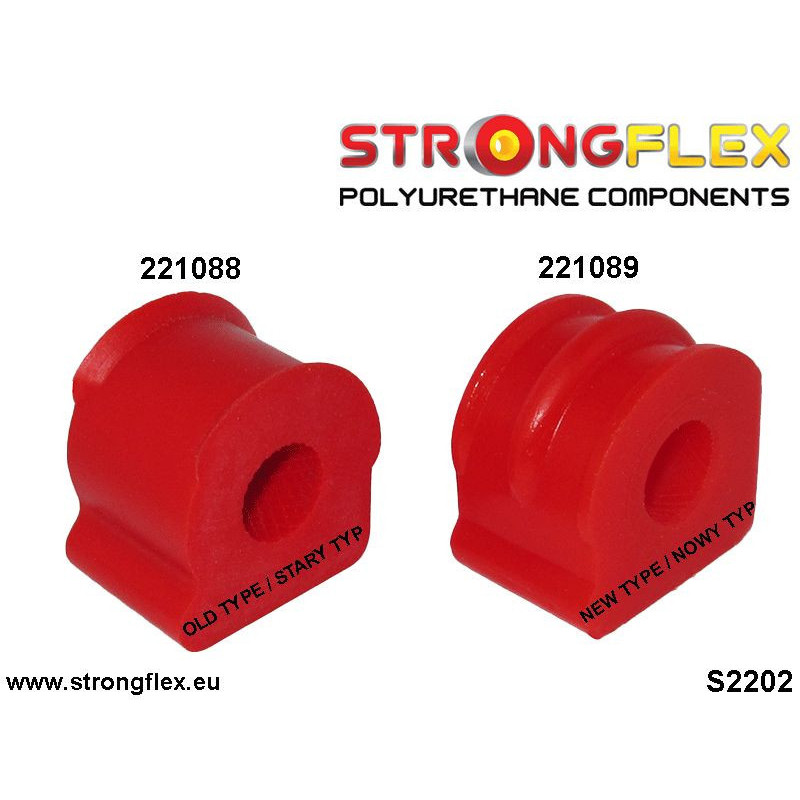

• There are two types of front stabilizer bushings.
  OLD TYPE - 221088 or NEW TYPE - 221089
  See photo S2202


• Depending on the type of front stabilizer link, select the correct number of bushings 221084 (0 or 4 pieces)

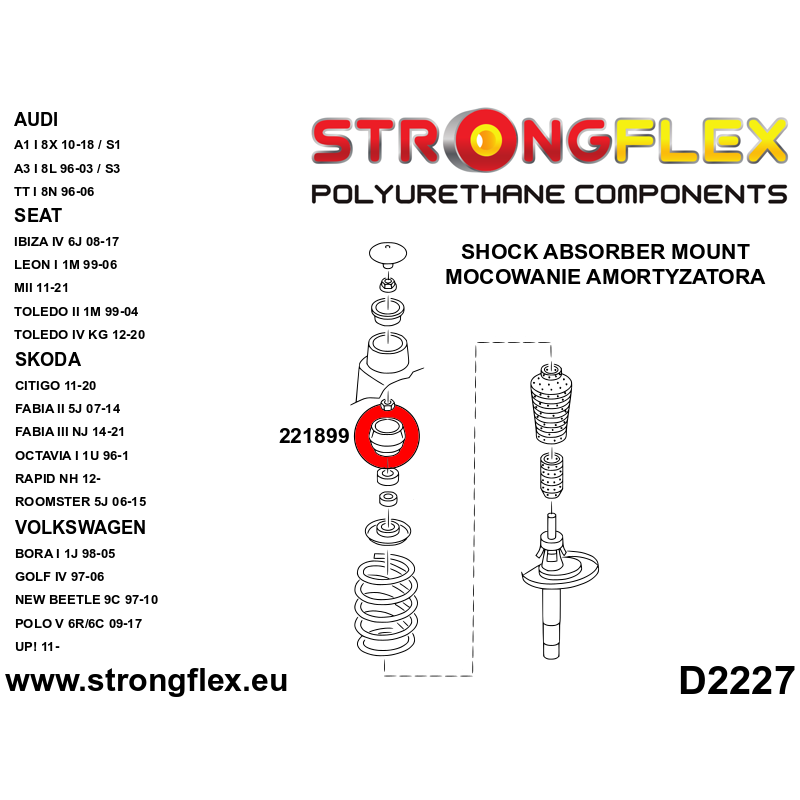

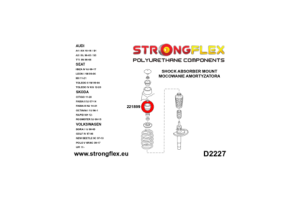

• Front shock top mount bush 221899A:
  Depending on your needs, choose the appropriate quantity 0pcs / 2pcs.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 29/31/33/35

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Reference: 226240A

Product name: Full suspension polyurethane bush kit SPORT

Fits to:

• Audi S1 8X (14-18)

Include:

• 2x 221072A: Front wishbone - front bush 30mm SPORT
• 2x 221561A: Front anti roll bar bush SPORT
• 2x 221667A: Front arm rear bush SPORT


• 2x 221942A: Trailing arm front bush SPORT
• 2x 221943A: Rear upper arm bush – inside SPORT
• 2x 221944A: Rear upper arm bush – outside SPORT
• 2x 221945A: Rear track rod inner bush SPORT
• 2x 221946A: Rear track rod outer bush SPORT
• 2x 221947A: Rear arm bush – inside SPORT
• 2x 221948A: Rear arm bush – outside SPORT
• 2x 221949A: Rear stabilizer bush SPORT


• 2x 221951A: Rear subframe – front bush 60mm SPORT
• 2x 221952A: Rear subframe – rear bush 52mm SPORT


• 1x 021789A: Rear diff mount - front bush 35mm SPORT
• 2x 021788A: Rear differential – rear bush SPORT

Diagrams:

• D0234
• D0236
• D2212
• D2224
• S2216

Notes

• There are two types of rear stabilizer bushings 221949/221950. Before buying, check which stabilizer clamp you have in your car. See photo S2216.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 29

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Reference: 276255B

Product name: Full suspension polyurethane bush kit

Fits to:

• Subaru Forester III (09-13) SH

Include:

• 2x 271341B: Front / rear anti roll bar bush
• 2x 271529B: Front arm front bush
• 2x 271609B: Front wishbone rear bush


• 2x 271610B: Rear trailing arm front bush
• 2x 271611B: Rear trailing arm rear bush
• 2x 271612B: Rear toe adjuster inner bush
• 2x 271613B: Rear lower track control inner bush
• 2x 271614B: Rear upper arm front bush
• 2x 271615B: Rear upper arm rear bush
• 2x 271616B: Rear anti roll bar bush


• 2x 271541B: Rear diff front mounting bush
• 2x 271618B: Rear diff rear mounting bush


• 2x 271920B: Rear subframe – front bush
• 2x 271921B: Rear subframe – rear bush


• 0/1x 271620B: Steering rack mount bush
• 0/2x 271621B: Steering rack mount bush

Diagrams:

• D2711
• D2716
• D2717

Notes

• Steering gear bushings:
  Bushings 271620 and 271621 fit hydraulic steering gear only. They do not fit electric steering gear.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 28/31

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!

Reference: 026277A

Product name: Rear suspension bush kit SPORT

Fits to:

• Audi A4 B9 (15-23) FWD / Quattro / S4 / RS4
• Audi A5 F5 (16-24) FWD / Quattro / S5 / RS5

Include:

• 4x 022062A: Rear arm bush – inside SPORT
• 4x 022063A: Rear anti roll bar link bush SPORT
• 2x 022064A: Rear arm bush – outside SPORT
• 2x 022065A: Rear arm bush – inside SPORT
• 4x 022066A: Rear arm bush – outside SPORT
• 2x 022067A: Rear arm bush – outside SPORT
• 2x 022068A: Rear lower arm – inside bush SPORT
• 2x 022069A: Rear hub bush SPORT
• 2x 022070A: Rear arm bush – inside SPORT
• 2x 022071A: Rear anti roll bar bush SPORT

Diagrams:

• D0243

Notes

• This set is only available in 90ShA hardness (yellow) because the original rubber bush is made of a hard rubber compound. The use of the 80ShA hardness bush (red) will reduce the driving of the car to the original rubber bush.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 26

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
