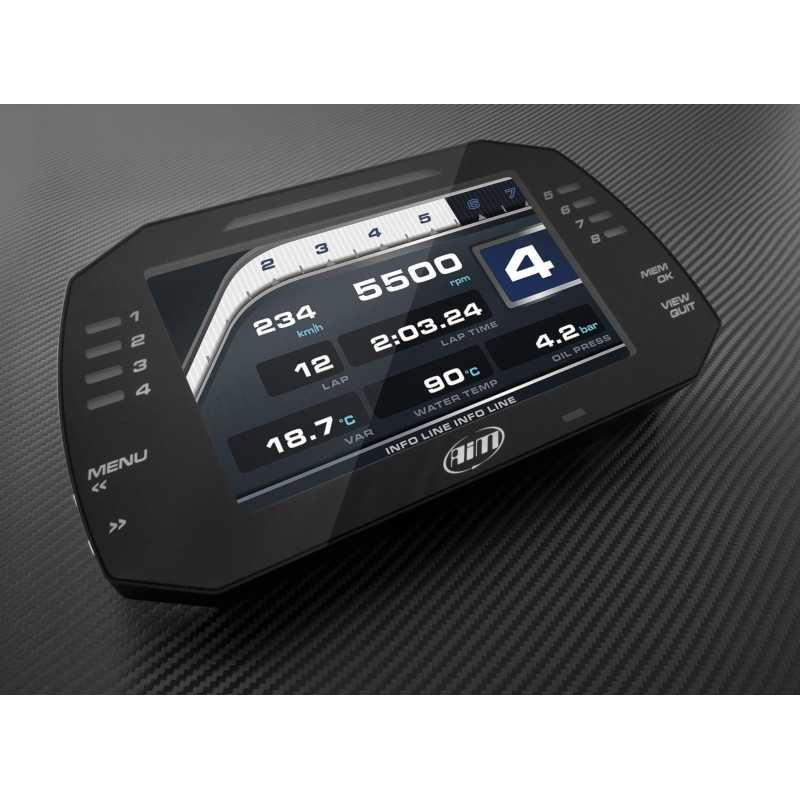

MXG 1.3
2 800,00 €
TTC

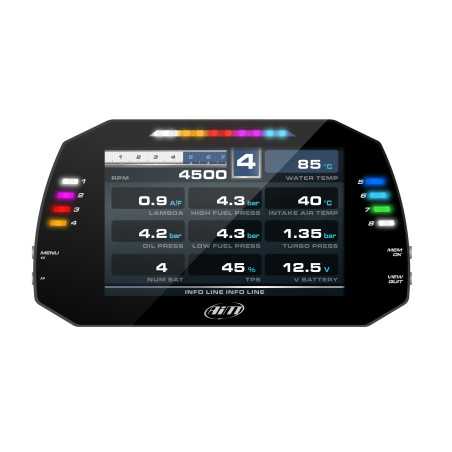

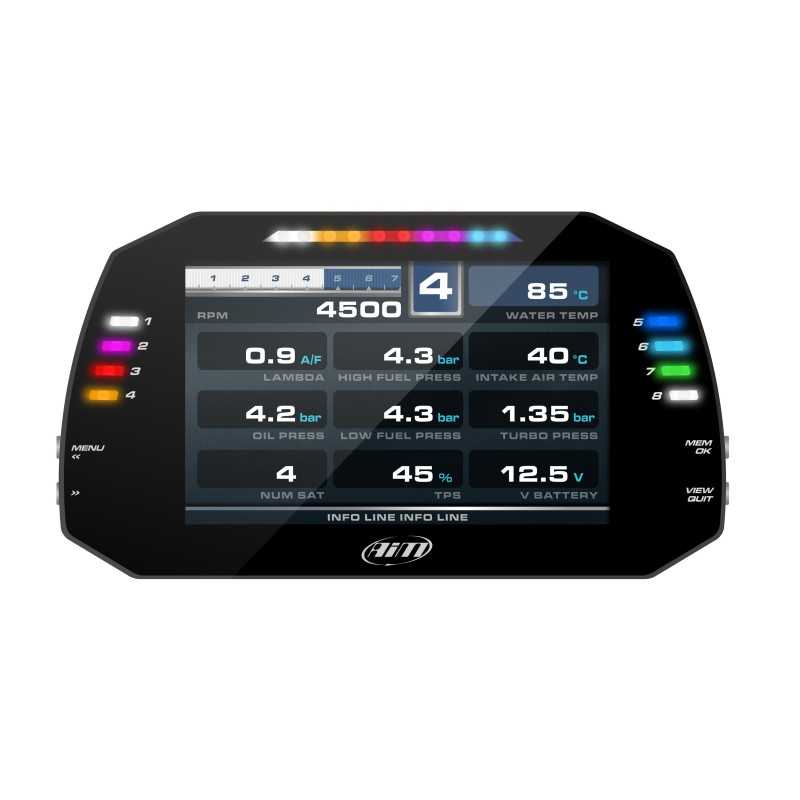

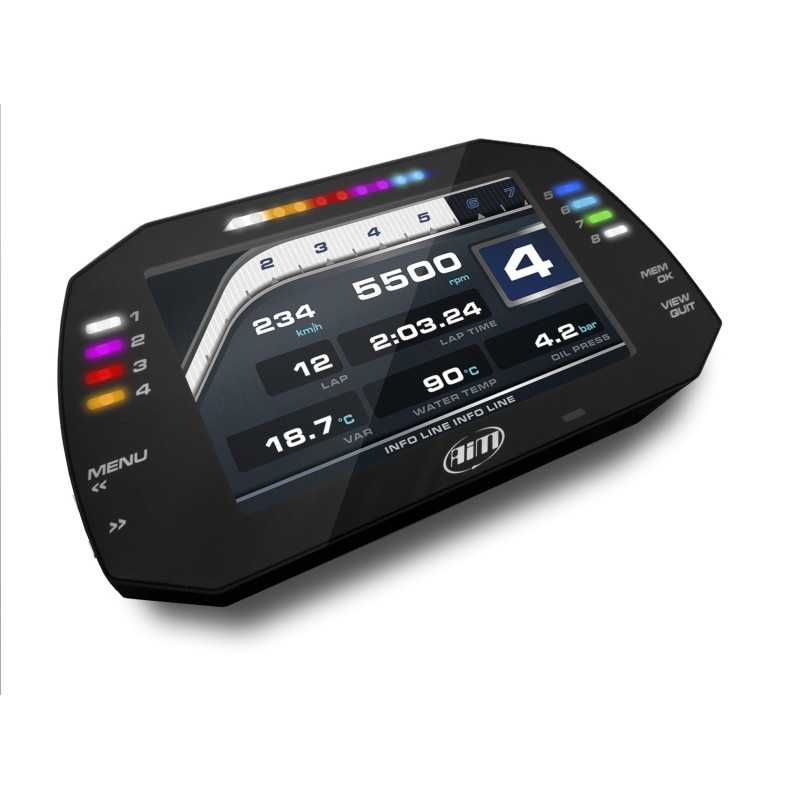

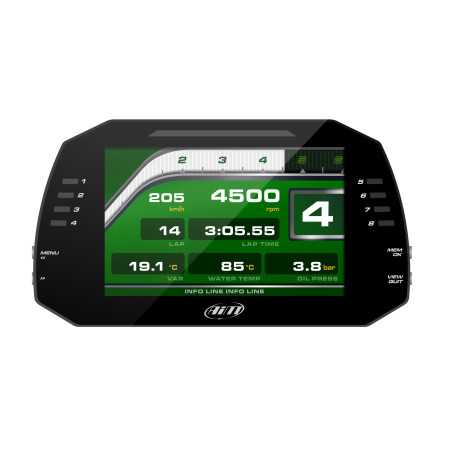

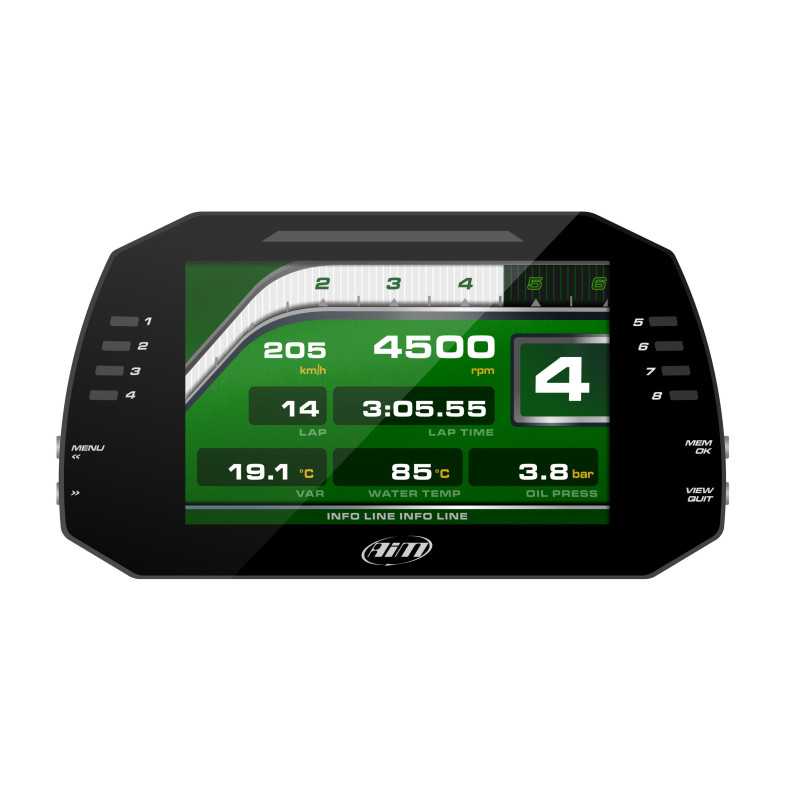

MXG 1.3 Strada appartient à la famille MX, une gamme complète de TFT Dash & Loggers conçus pour le sport automobile par AiM.
| Display |
7” TFT
|
| Resolution |
800x480 pixels
|
| Contrast |
1,000:1
|
| Brightness |
700cd/m2 - 1,100 Lumen
|
| Ambient light sensor |
Yes
|
| Alarm LEDs |
8 configurable RGB LEDs
|
| Shift lights |
10 configurable RGB LEDs
|
| CAN connections |
3
|
| ECU connections |
CAN, RS232 or K-Line
|
| ECU compatibility |
+ 2,000 industry leading ECUs
|
| Expansion CAN connection |
GPS09c, Channel Expansion, TC Hub, LCU1S,
SmartyCam 3 Series |
| Analog/digital inputs |
8 fully configurable, max 500 Hz each
|
| Digital inputs |
1 speed input, coil RPM input
|
| Digital outputs |
1 (1 A max)
|
| Second CAN |
Yes
|
| Body |
Anodized Aluminum
|
| Pushbuttons |
Metallic
|

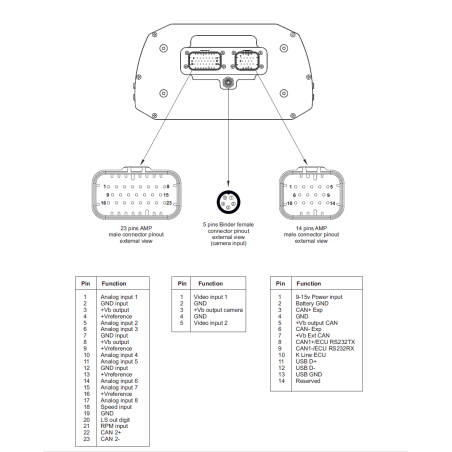

| Connectors |
2 AMP connectors + 1 Binder connector
|
| Power consumption |
400 mA
|

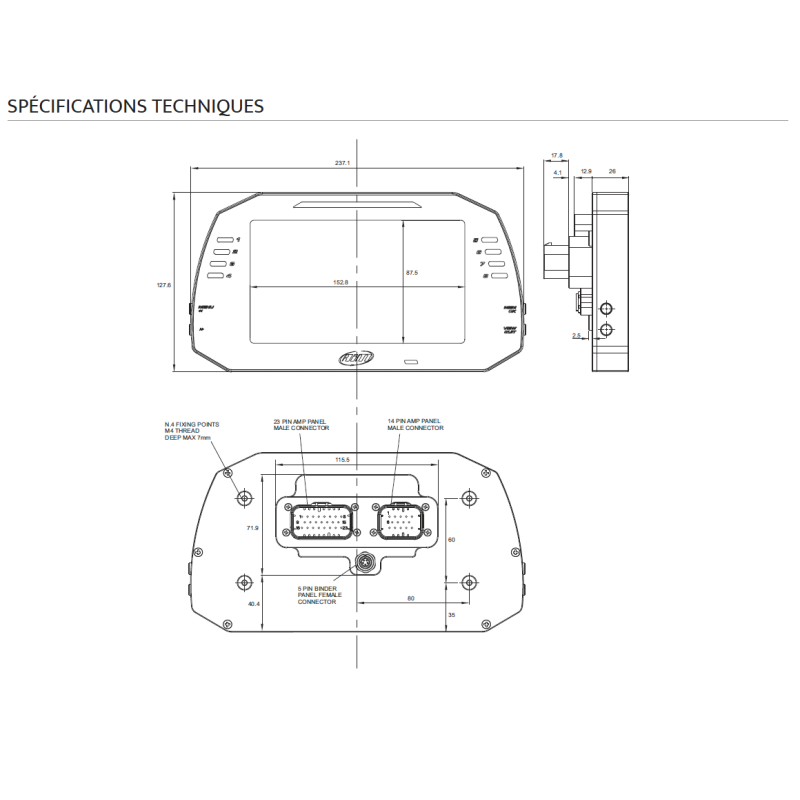

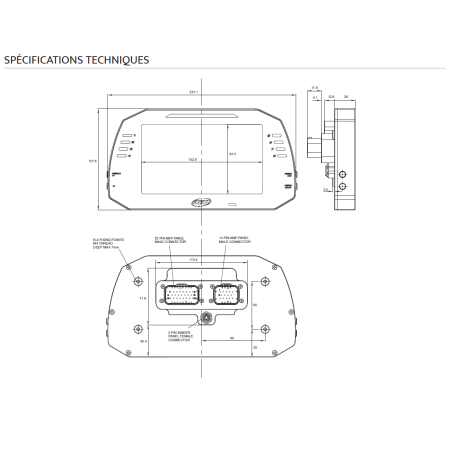

| Dimensions |
237x127.6x26 mm
|
| Weight |
950 g
|
| Waterproof |
IP67
|
Détails du produit
XA4MXG12A13001
